2SY系列压缩机

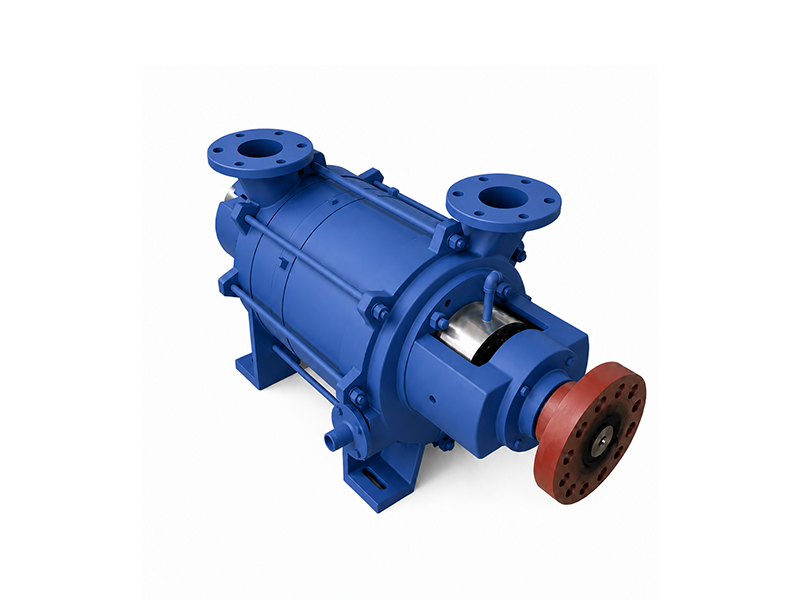

SY（单级）、2SY（两级）系列水环式压缩机及成套设备
SY (Single-stage), 2SY (Two-stage) Series Water Ring Compressors and Packages
概述 / Overview
SY系列水环压缩机特别适于抽除含有水蒸气、灰尘、易燃易爆和在高温下易产生化学反应的气体。广泛应用于石油化工、制药和城市煤气等行业的易燃易爆气体的压缩输送和尾气回收等工艺流程。
The SY series water ring compressors are especially suitable for handling gases containing water vapor, dust, flammable and explosive components, and gases that may react chemically at high temperature. They are widely used in petrochemical, pharmaceutical and city gas industries for compression, transportation and tail-gas recovery of flammable and explosive gases.
2SY系列水环压缩机具有排气压力高、结构紧凑、运转平稳、等温压缩等特点。由于在运转过程中没有金属之间的直接摩擦，因此运行中几乎没有磨损，可长期运转且基本无需维护。高压端采用柔性排气阀结构，保证排气压力在0.3MPa～0.8MPa范围内，压缩机始终工作在最佳效率点上；采用外冲式双面机械密封，保证被压缩介质完全无泄漏。
The 2SY series features high discharge pressure, compact structure, smooth operation and near-isothermal compression. Because there is no direct metal-to-metal friction during operation, wear is minimal and the compressor can run continuously with low maintenance demand. The high-pressure end uses a flexible discharge valve structure to keep the discharge pressure within 0.3MPa to 0.8MPa, allowing the compressor to operate at an optimal efficiency point. Externally flushed double mechanical seals ensure no leakage of the compressed medium.
特点及应用范围 / Features and Applications
由于气体在水（液）环压缩机中的压缩过程是等温压缩，所以极适合压送易燃易爆气体，如化工、石化行业的氯乙烯、苯乙烯、氧化物、氯乙烯单体、二氧化硫、硫化氢、苯、丁乙烯、氯气等。
Because the compression process in a water/liquid ring compressor is nearly isothermal, it is highly suitable for compressing flammable and explosive gases, including vinyl chloride, styrene, oxides, vinyl chloride monomer, sulfur dioxide, hydrogen sulfide, benzene, butadiene and chlorine in chemical and petrochemical processes.

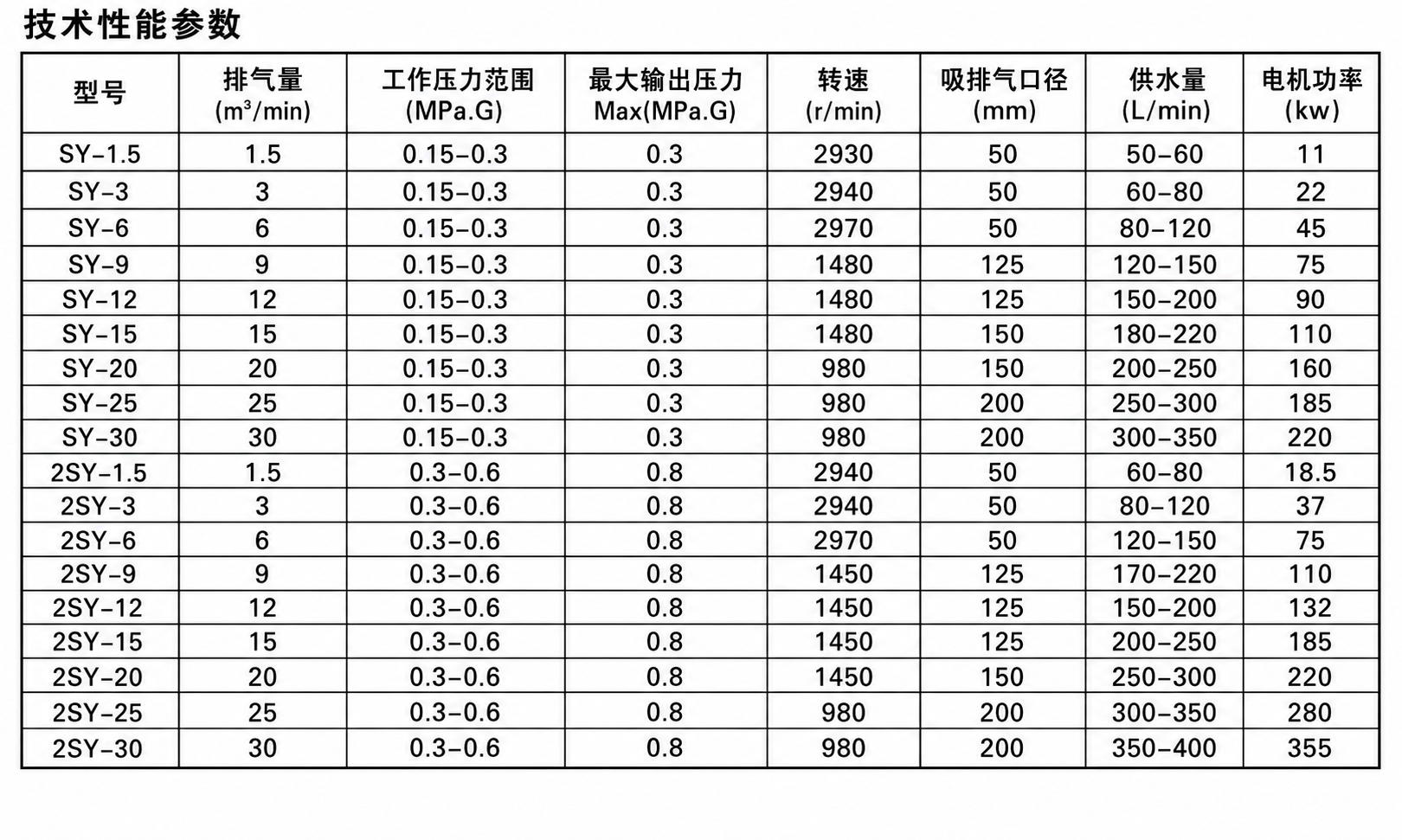

技术性能参数 / Technical Performance Parameters
|
型号 |
排气量 |
工作压力范围 |
最大排出压力 |
转速 |
吸排气口径 |
供水量 |
电机功率 |
|
SY-1.5 |
1.5 |
0.15～0.3 |
0.3 |
2930 |
50 |
50～60 |
11 |
|
SY-3 |
3 |
0.15～0.3 |
0.3 |
2940 |
50 |
60～80 |
22 |
|
SY-6 |
6 |
0.15～0.3 |
0.3 |
2970 |
50 |
80～120 |
45 |
|
SY-9 |
9 |
0.15～0.3 |
0.3 |
1480 |
125 |
120～150 |
75 |
|
SY-12 |
12 |
0.15～0.3 |
0.3 |
1480 |
125 |
150～200 |
90 |
|
SY-15 |
15 |
0.15～0.3 |
0.3 |
1480 |
150 |
180～220 |
110 |
|
SY-20 |
20 |
0.15～0.3 |
0.3 |
980 |
150 |
200～250 |
160 |
|
SY-25 |
25 |
0.15～0.3 |
0.3 |
980 |
200 |
250～300 |
185 |
|
SY-30 |
30 |
0.15～0.3 |
0.3 |
980 |
200 |
300～350 |
220 |
|
2SY-1.5 |
1.5 |
0.3～0.6 |
0.8 |
2940 |
50 |
60～80 |
18.5 |
|
2SY-3 |
3 |
0.3～0.6 |
0.8 |
2940 |
50 |
80～120 |
37 |
|
2SY-6 |
6 |
0.3～0.6 |
0.8 |
2970 |
50 |
120～150 |
75 |
|
2SY-9 |
9 |
0.3～0.6 |
0.8 |
1450 |
125 |
170～220 |
110 |
|
2SY-12 |
12 |
0.3～0.6 |
0.8 |
1450 |
125 |
150～200 |
132 |
|
2SY-15 |
15 |
0.3～0.6 |
0.8 |
1450 |
125 |
200～250 |
185 |
|
2SY-20 |
20 |
0.3～0.6 |
0.8 |
1450 |
150 |
250～300 |
220 |
|
2SY-25 |
25 |
0.3～0.6 |
0.8 |
980 |
200 |
300～350 |
280 |
|
2SY-30 |
30 |
0.3～0.6 |
0.8 |
980 |
200 |
350～400 |
355 |
注 / Note：以上参数用于网站展示和初步选型，最终配置以技术协议或实际工况确认为准。
Note: The above parameters are for website display and preliminary selection; the final configuration shall be confirmed according to the technical specifications or actual operating conditions.
